| Item | Name | Unit | Data | Remark | |
| 1 | Max bending capacity | Carbon Steel | Φ18×1.5mm | ||
| 2 | Max bending radius | mm | 190 | ||
| 3 | Min bending radius | mm | R15-R120 | ||
| 4 | Max feeding length | mm | 1800 | ||
| 5 | Max bending degree | Degree | 190 | ||

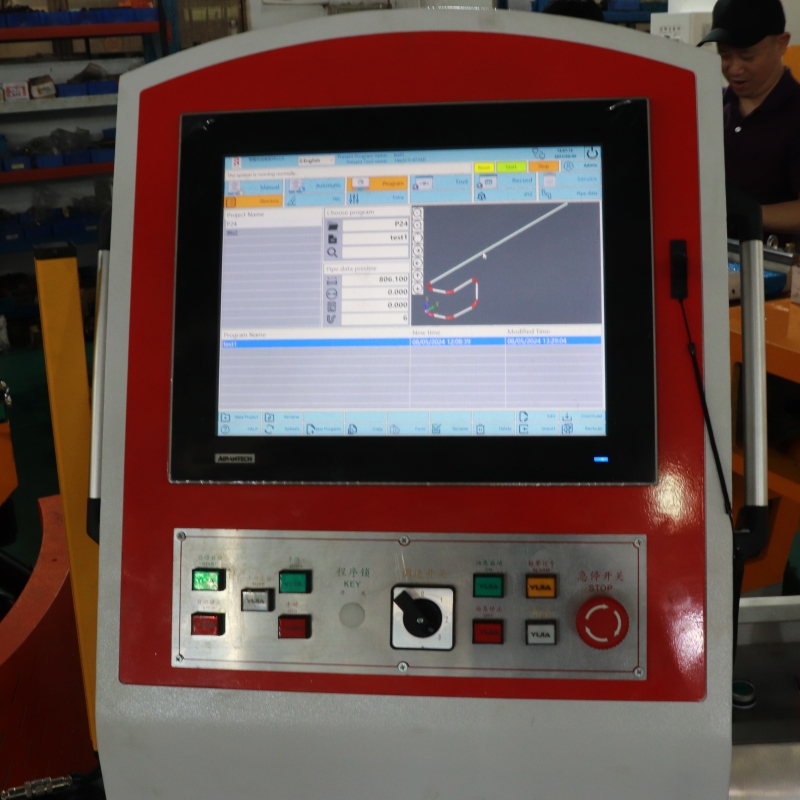

| 6 | Control Panel | IPC+touch scrren | |||
| 7 | Bending unit | piece | 16 | ||
| 8 | Working speed | bending speed | Deg/sec | 120 | |
| Rotary speed | Deg/sec | 250 | |||
| Feeding speed | mm/sec | 800 | |||
| 9 | Accuracy | feeding | mm | ±0.1 | |
| rotary | Degree | ±0.1 | |||
| bending | Degree | ±0.1 | |||
| 10 | Motor power | Kw | 15.85 | ||
| 11 | Program input | USB 3D Simulation | Adjustable | ||
| 12 | Oil tank | L | 110 | ||
| 13 | Machine weight | Kg | 1000 | ||
| 14 | Machine size | mm | 3800×2500×1650mm | ||
| 15 | Working height | mm | 2500 | ||
General Introduction

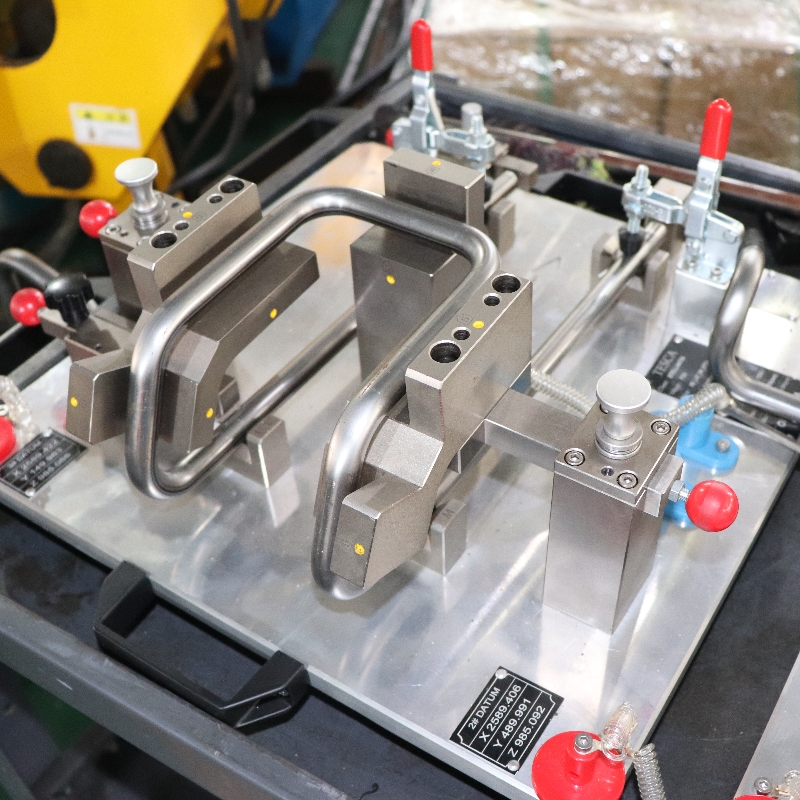

1.Integrated bending headrest bar with weld detection

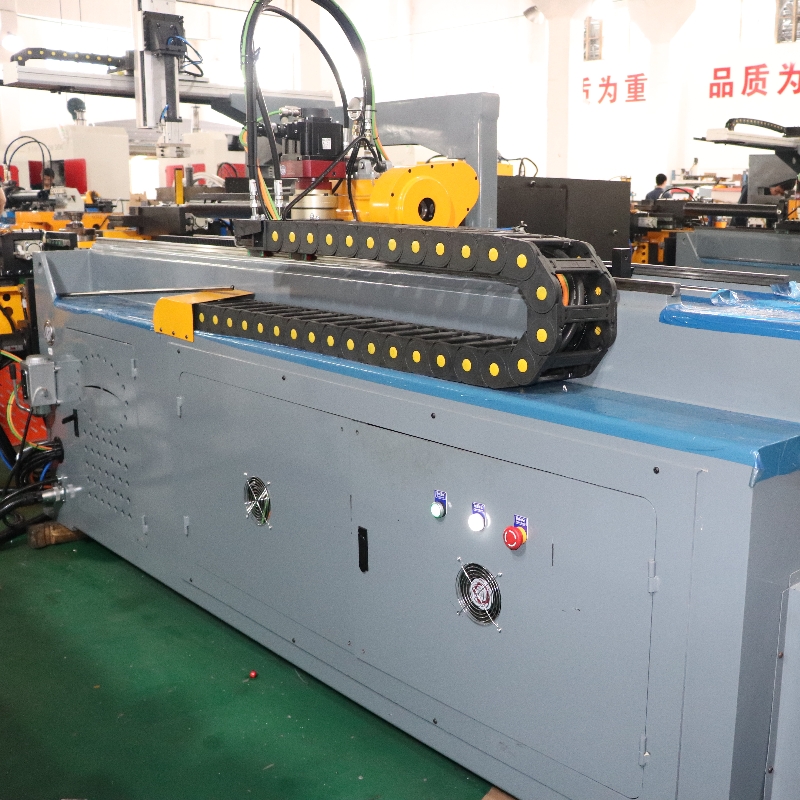

2.Fully automatic CNC tube bending machine, with PLC control system,

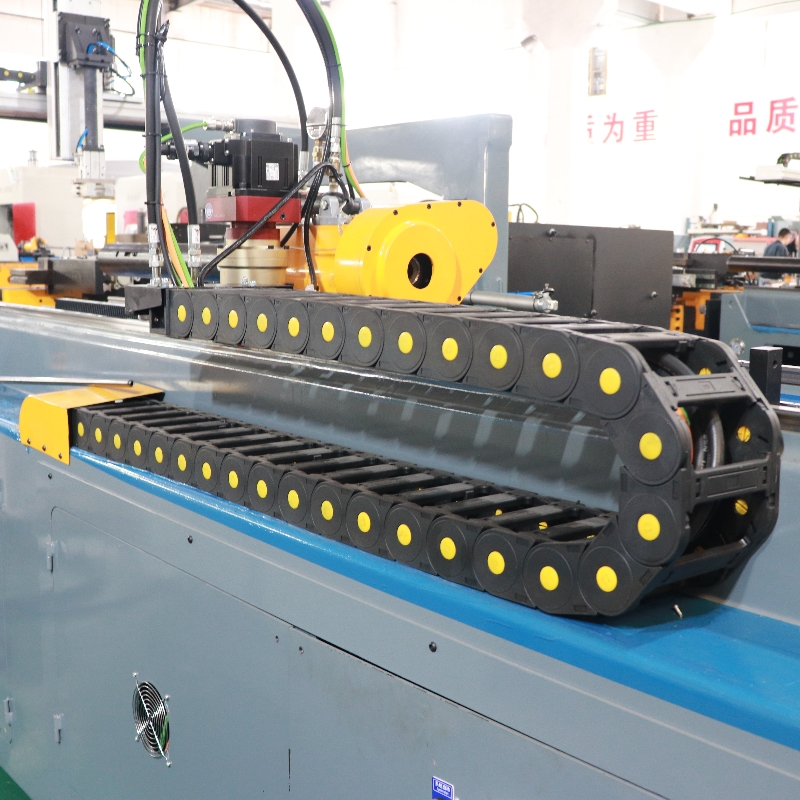

3.servo for rotary, feeding and bending. Left and Right Bending function to avoid Interference. Touch screen panel display English and other language, have different bending degree prefabricate, dialogue operation, can choose manual , semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.
3.multi axles working simultaneously.
4.security code for the protection the data setting and selected operation features.
5.manual step by step teach code for interference solution
6.diagnosis error immediately
7.To access to the history bending setting data to the facilitate study of malfunction with one set of tooling
8.All the parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.
9.CNC fully automatic, have cubical space bending equipment, loading the whole bending process is automatic. The machine is convenient operation, stable performance and high safety factor. The machine is the ideal choice for the pipe processing.
